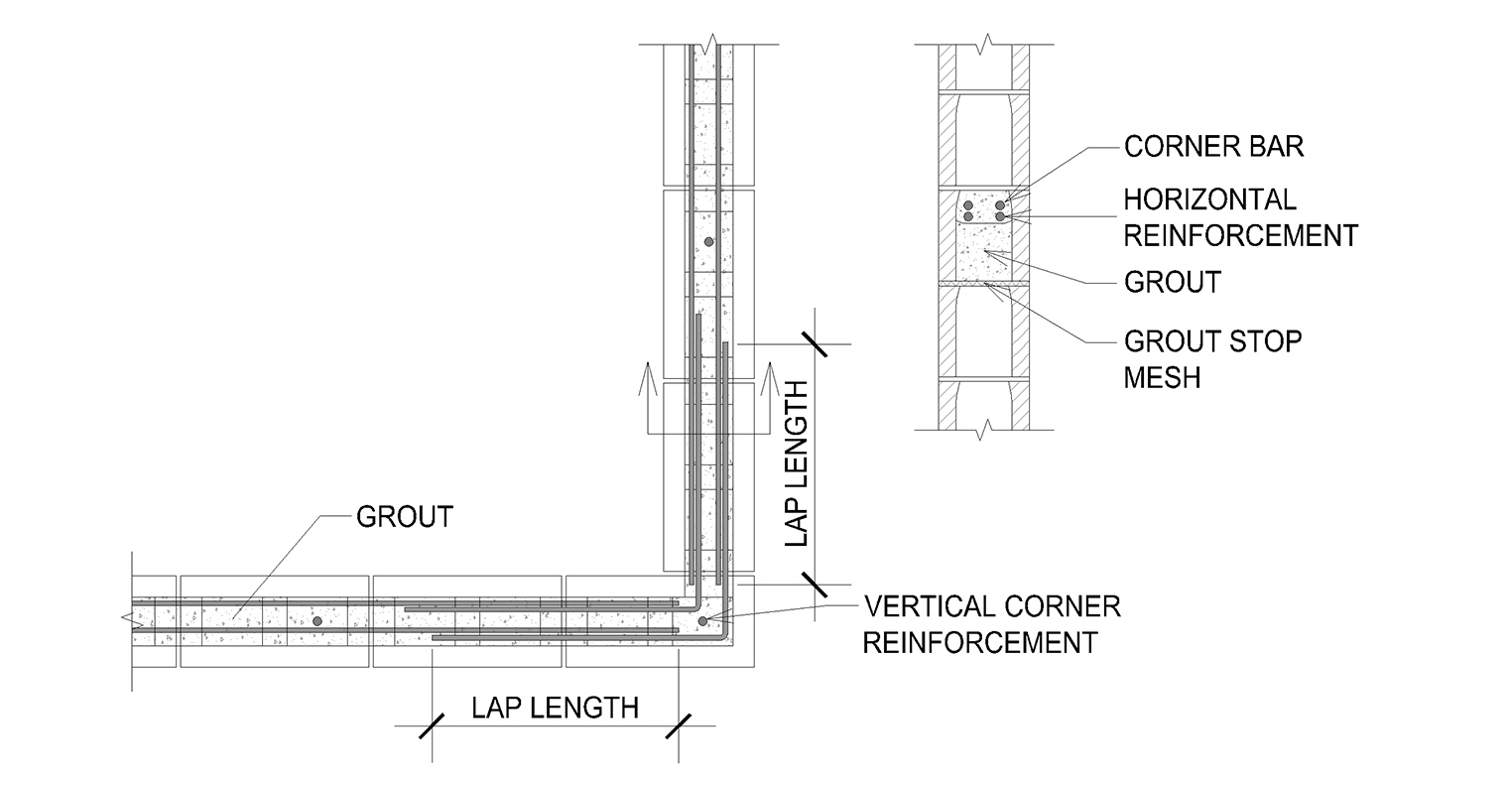

Detail DT. 1: Bond Beam at Corner

Structural - Detail DT1 Image
Structural - Detail DT1 Image
Notes

  • LAP LENGTH VARIES WITH BAR DIAMETER, PER STRUCTURAL REQUIREMENTS
  • 15M MAXIMUM RECOMMENDED BAR DIAMETER DUE TO SPACE CONSTRAINTS
