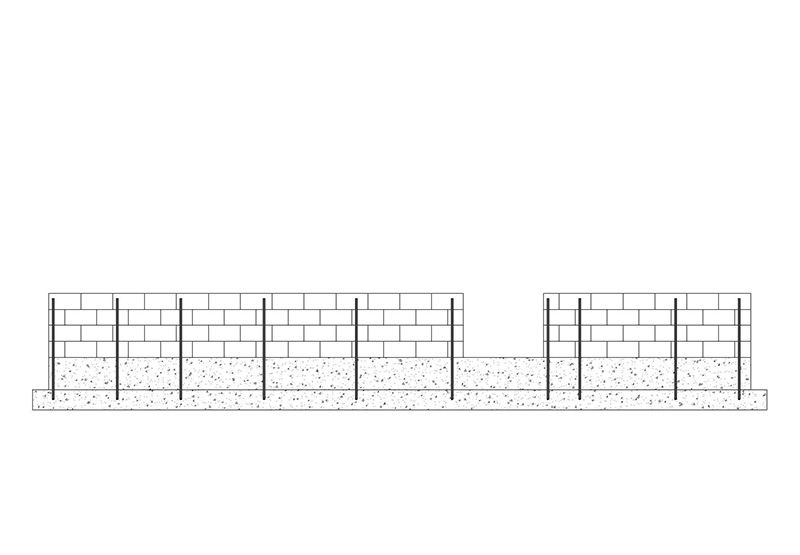

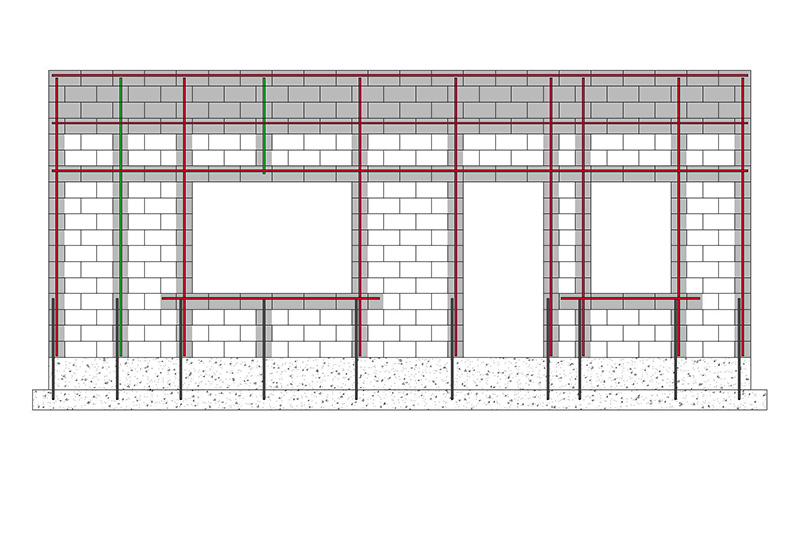

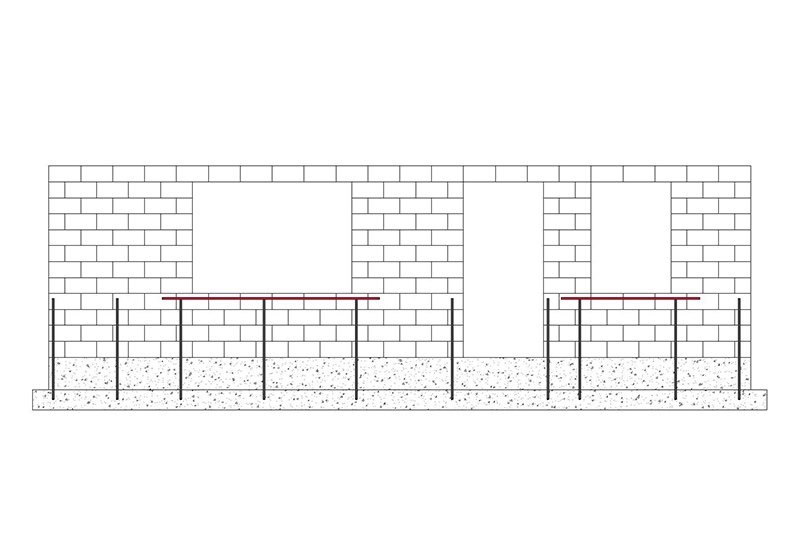

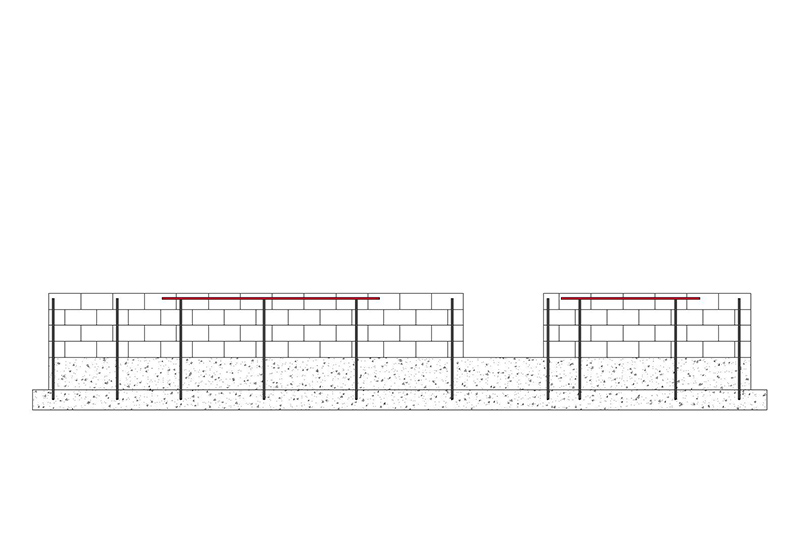

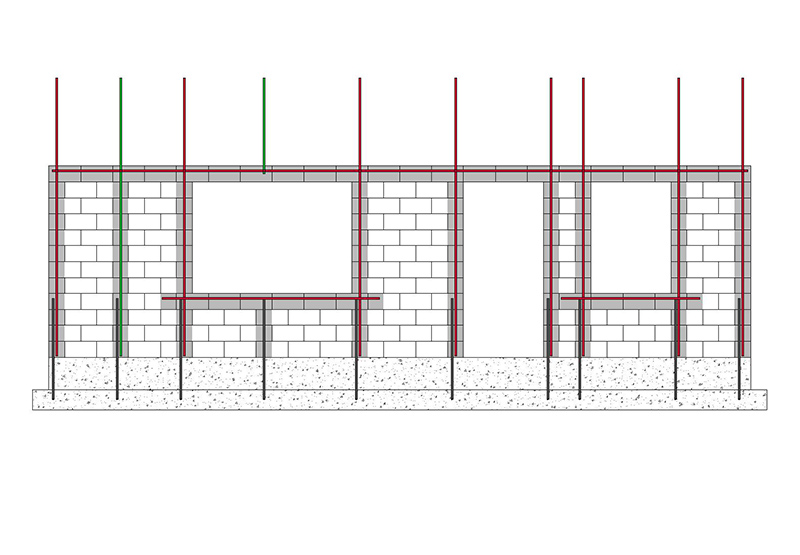

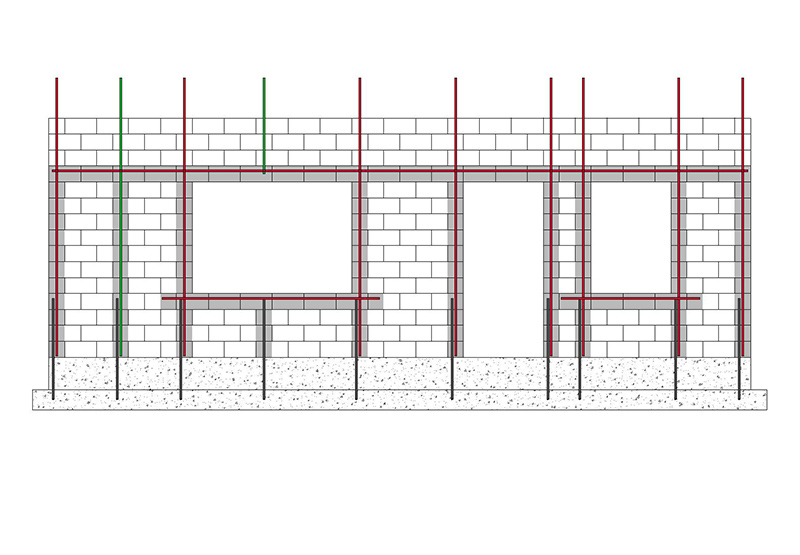

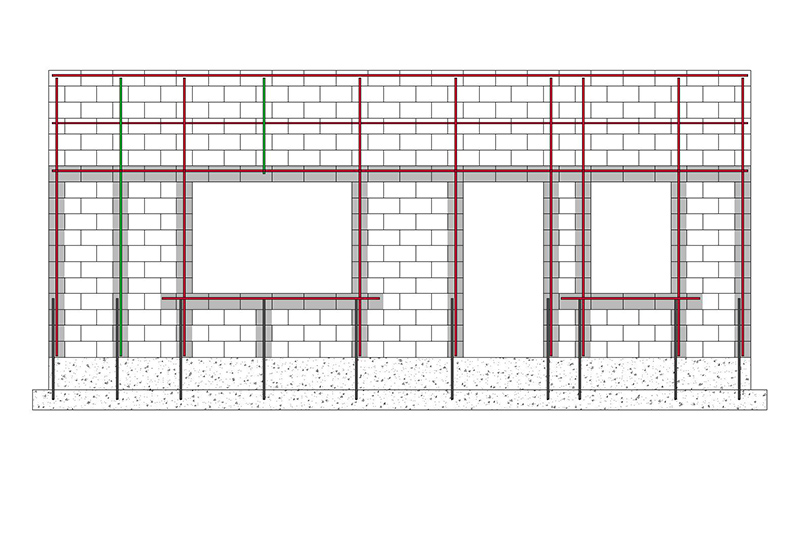

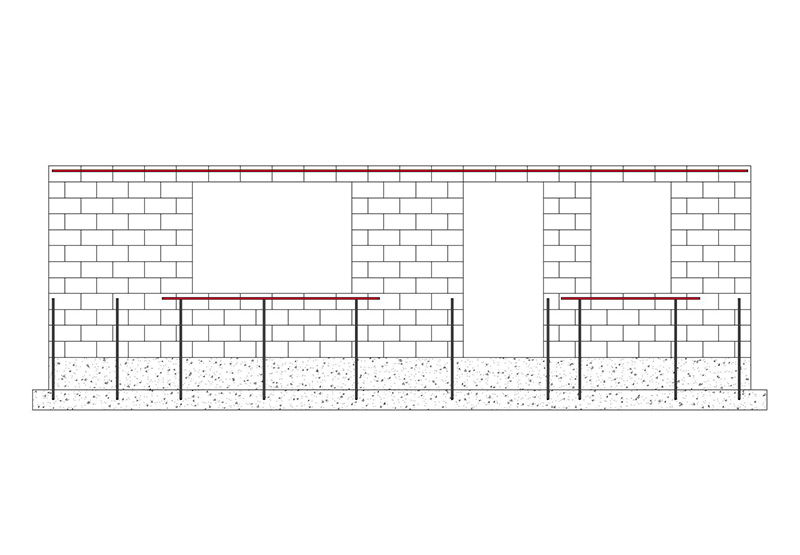

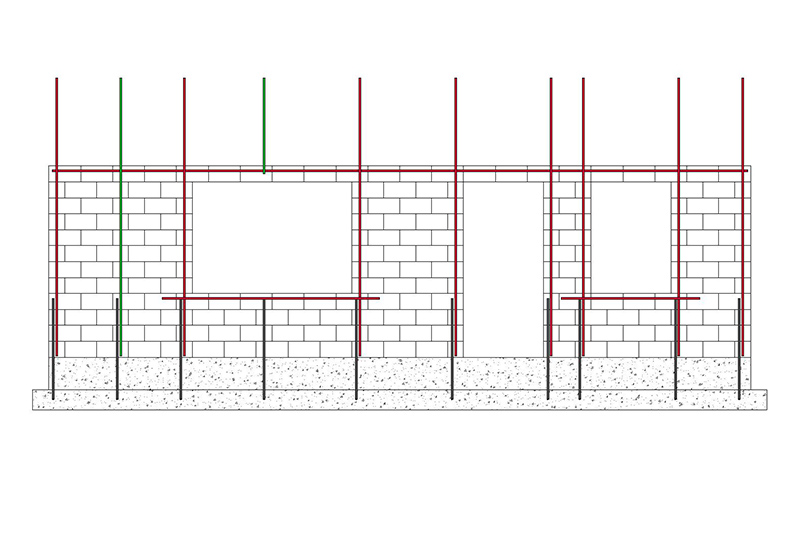

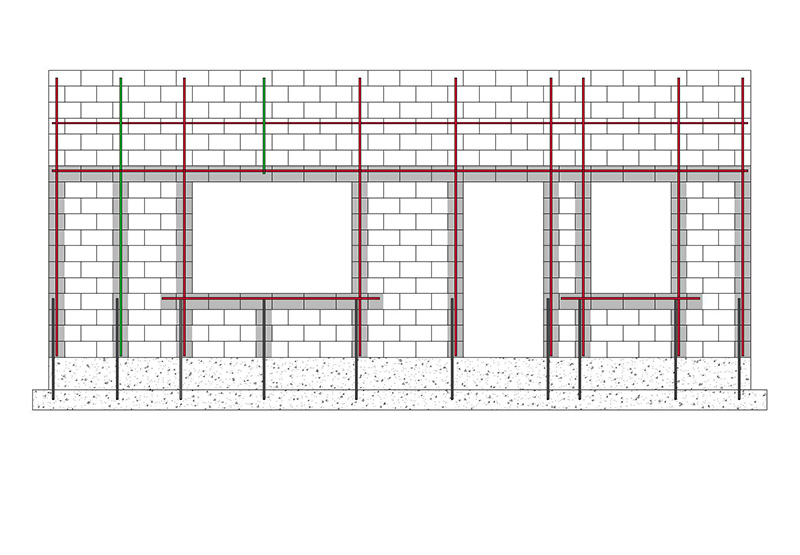

Detail EL. 1: Reinforcement - One Storey Wall

Structural - Detail EL.1 Image

Legend

Grey - Grouted Cells

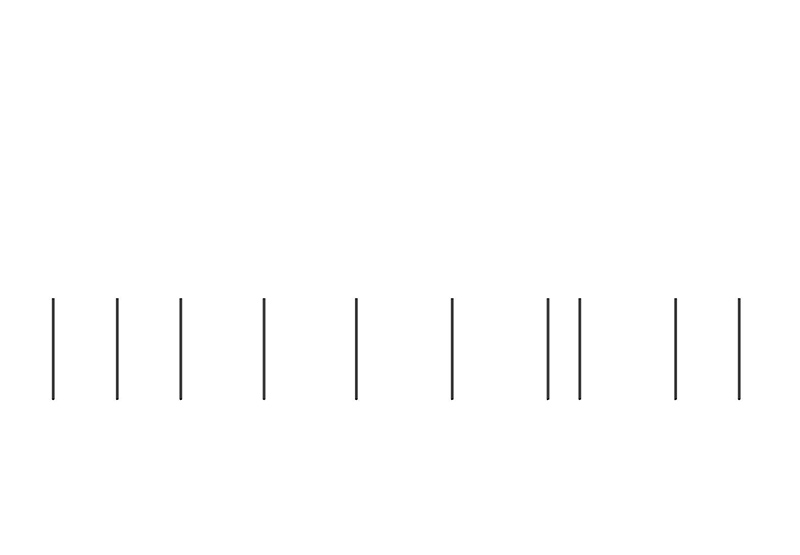

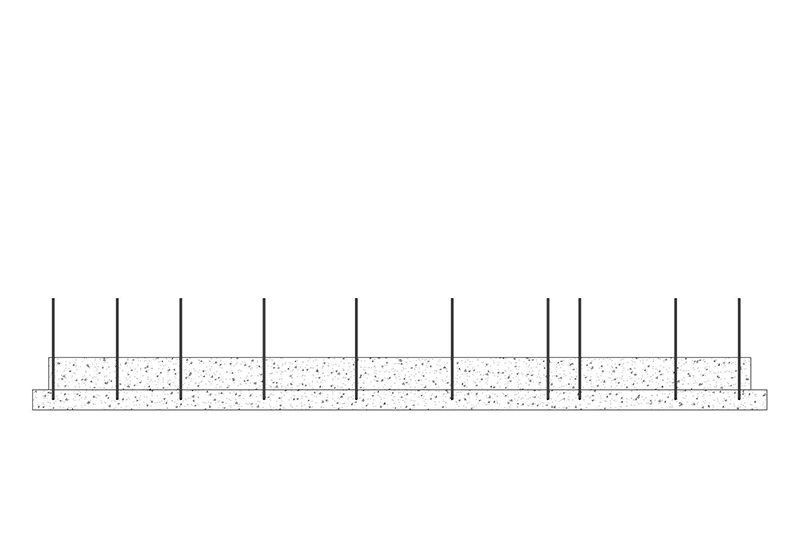

Black - Reinforcement Dowels

Red - Minimum Reinforcement

Green - Designed Reinforcement













  • STEEL REINFORCING TO MEET MINIMUM SEISMIC AND OTHER STRUCTURAL REQUIREMENTS

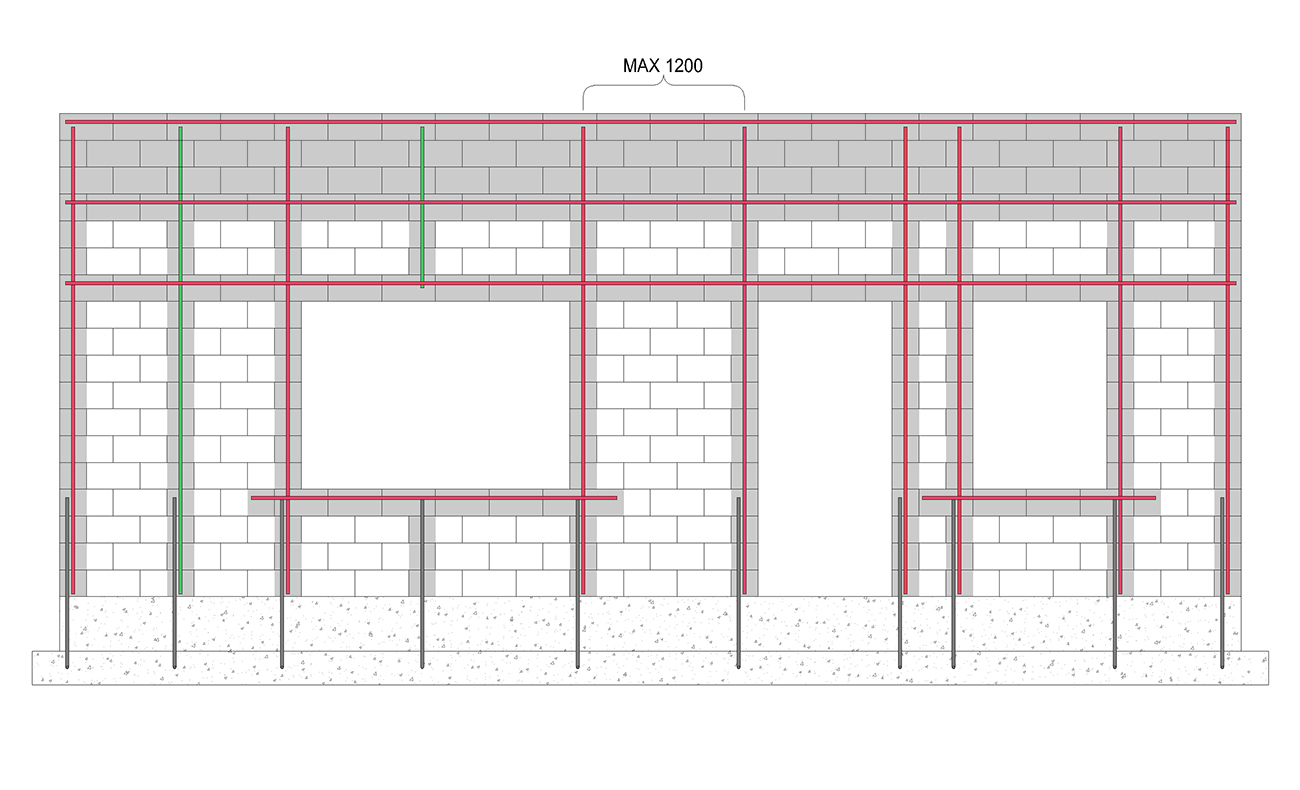

  • MAXIMUM 1200 SHOWN FOR COASTAL BC SEISMIC REQUIREMENTS
