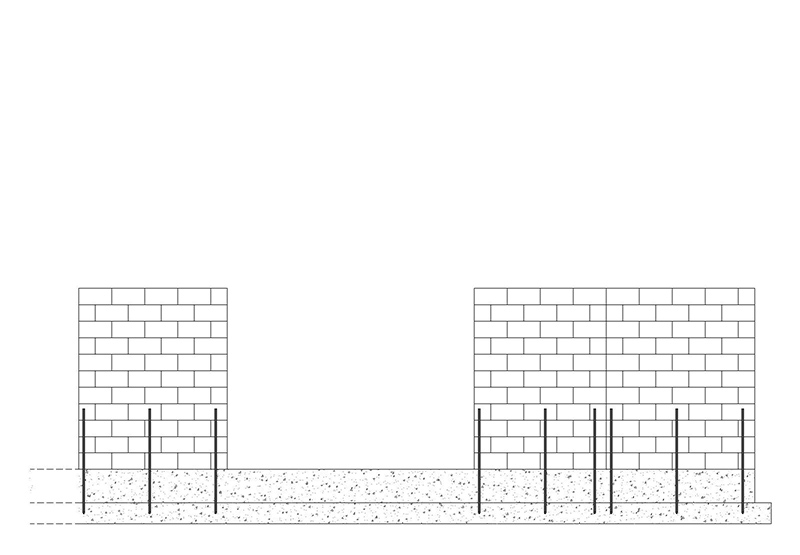

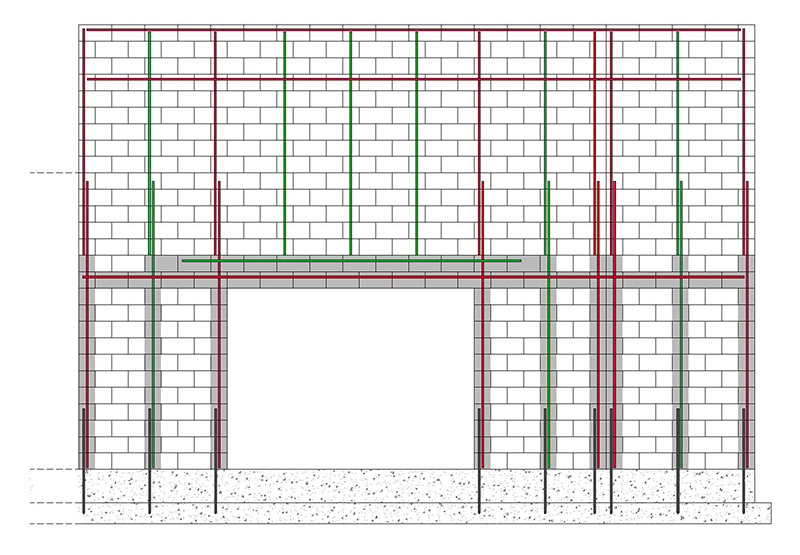

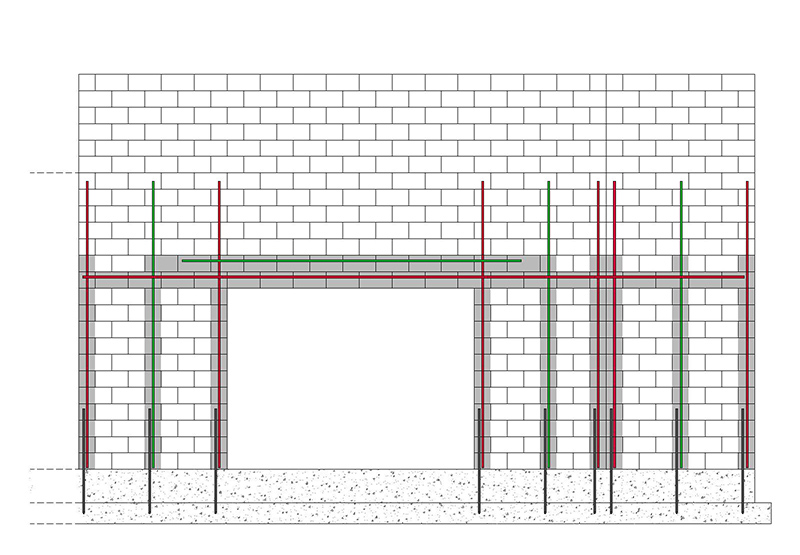

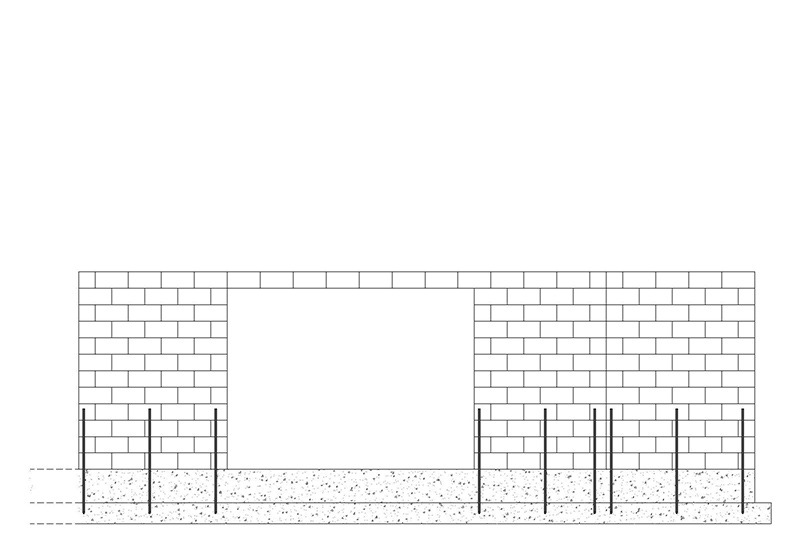

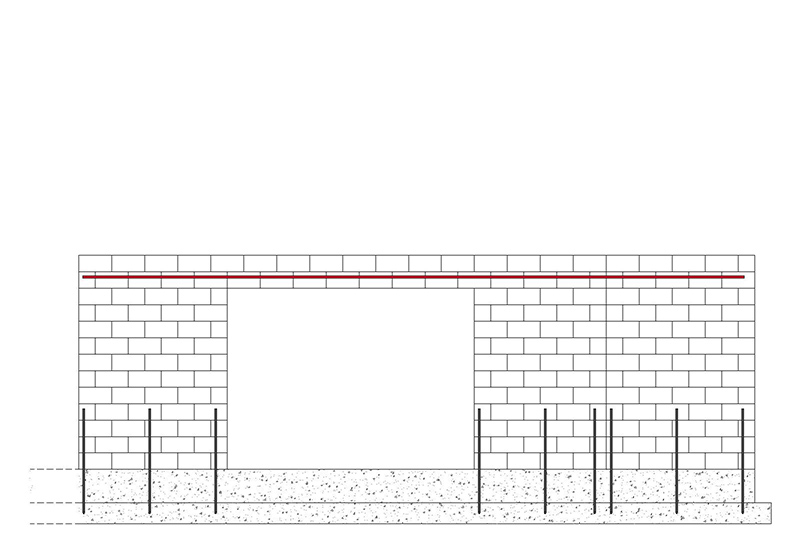

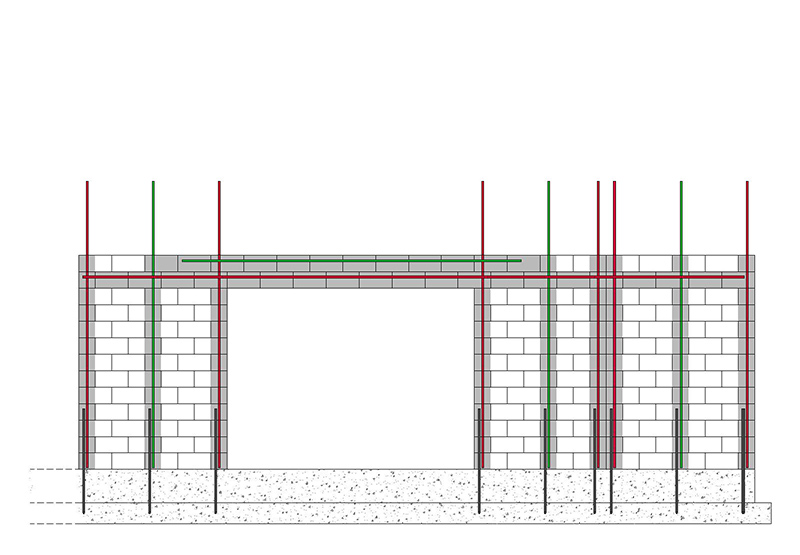

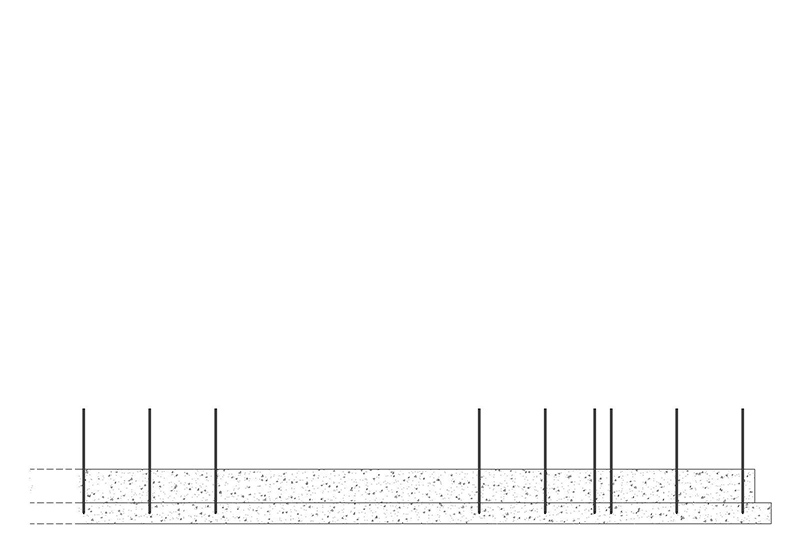

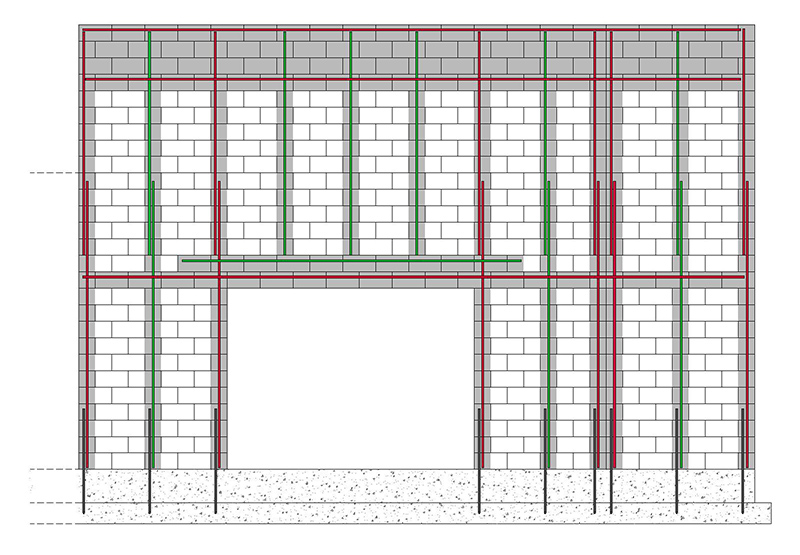

Detail EL. 2: Reinforcement - Two Storey Wall

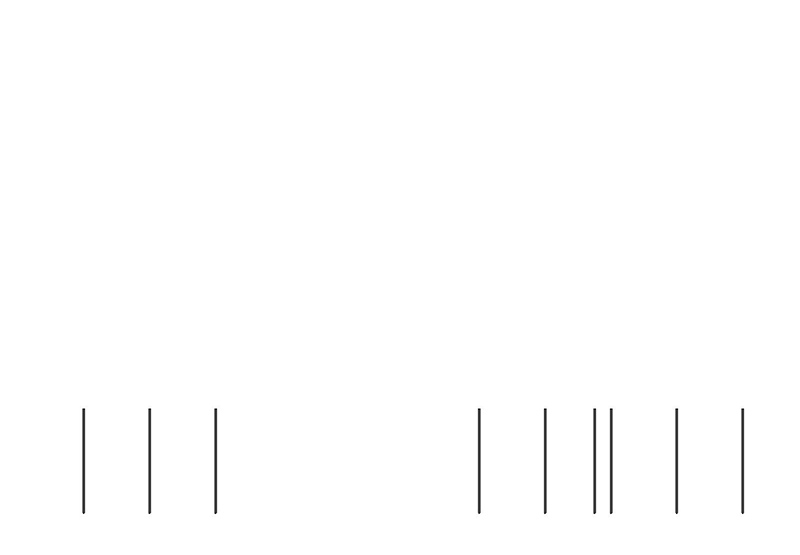

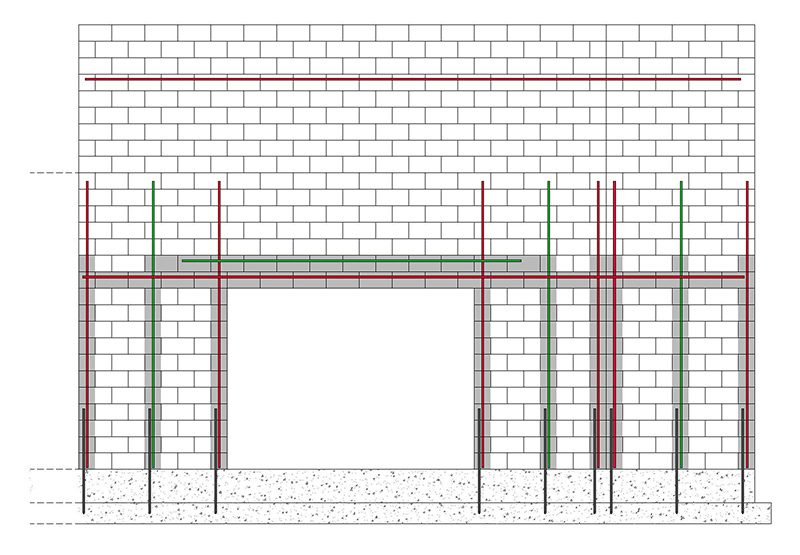

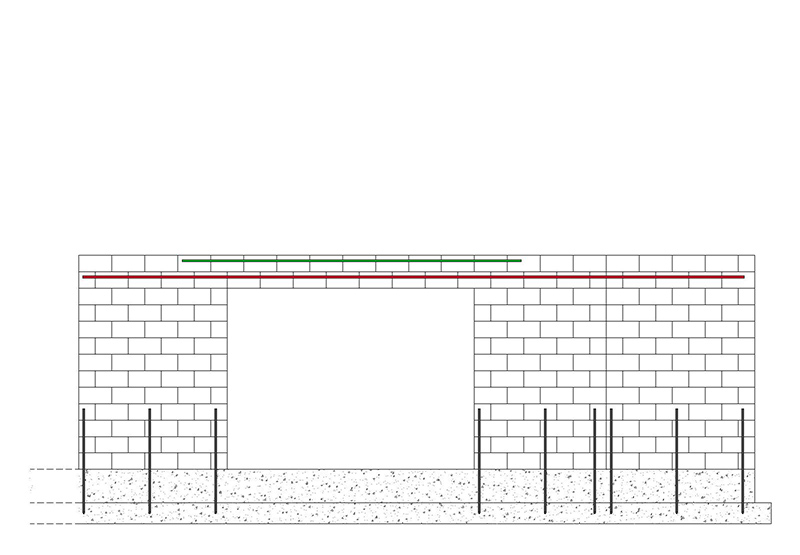

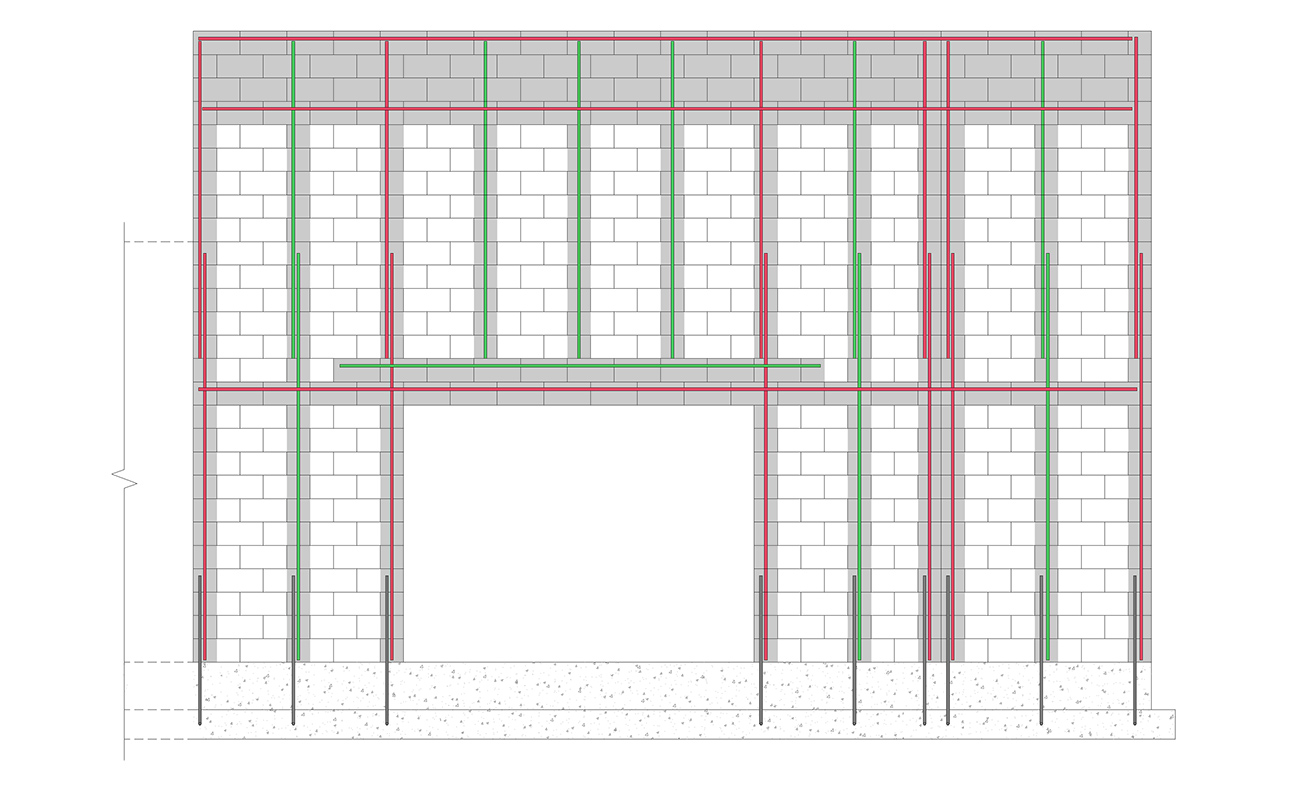

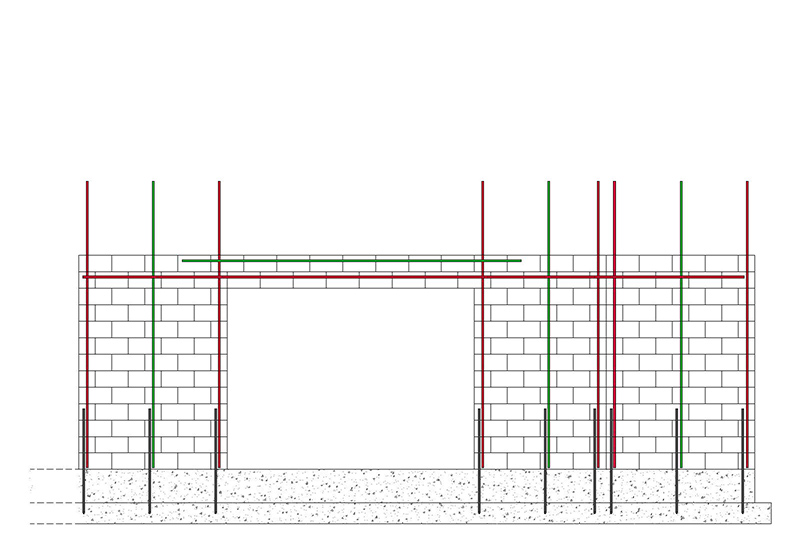

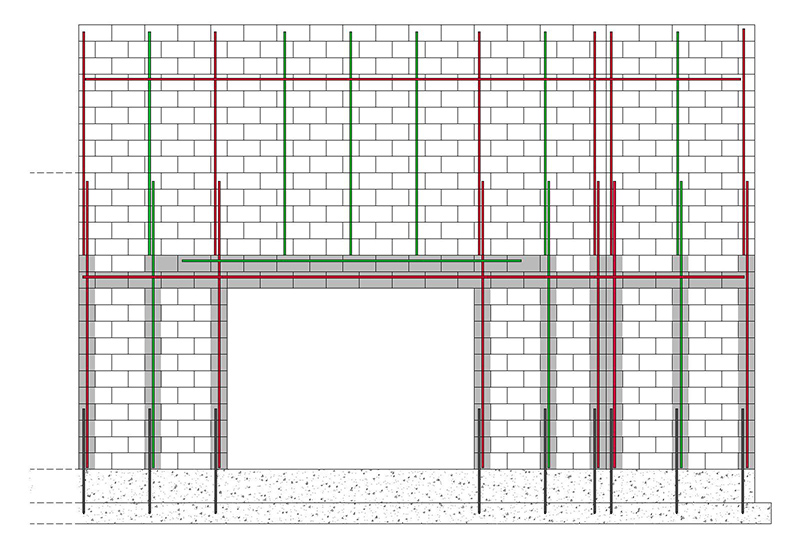

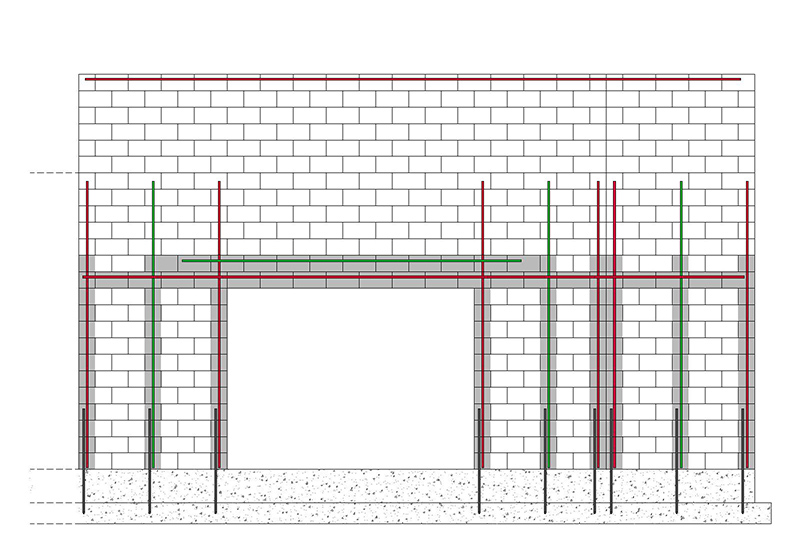

Structural - Detail EL.2 Image

Legend

Grey - Grouted Cells

Black - Reinforcement Dowels

Red - Minimum Reinforcement

Green - Designed Reinforcement













Notes

  • STEEL REINFORCING TO MEET MINIMUM SEISMIC AND OTHER STRUCTURAL REQUIREMENTS
  • MAXIMUM 1200 SHOWN FOR COASTAL BC SEISMIC REQUIREMENTS
