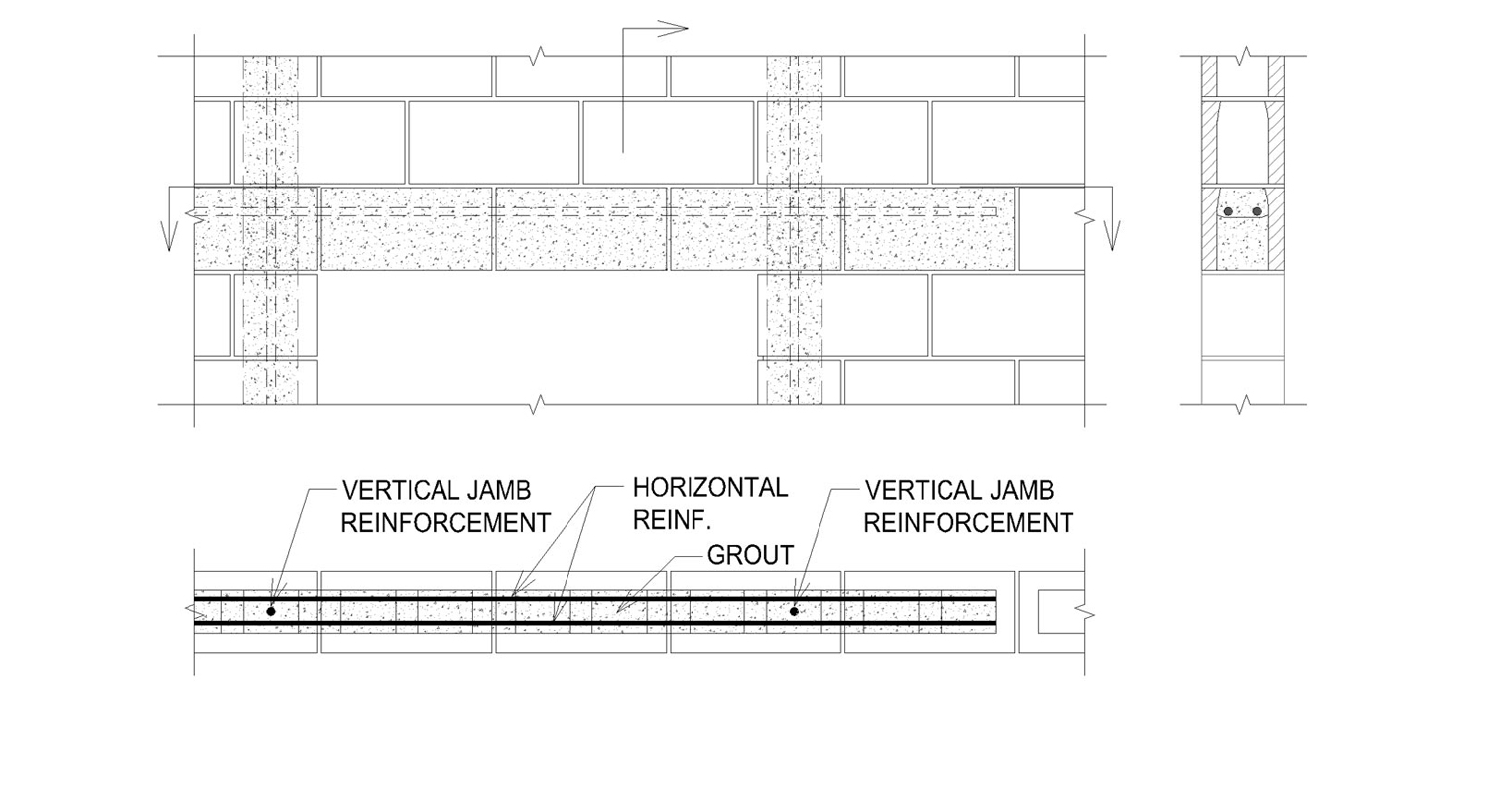

Detail B. 1: Lintel

Masonry Structural Section B

B2

B1

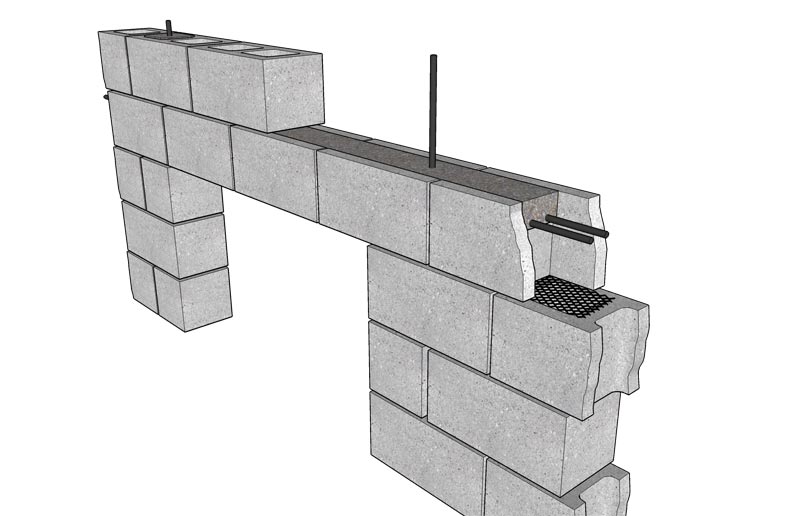

Structural - Detail B1 Image
Structural - Detail B1 Image
Notes

  • TWO OR MORE REINFORCED COURSES MAY BE REQUIRED FOR LONGER SPANS AND HEAVIER LOADS (SEE DETAIL D.1)
  • EXTEND REINFORCEMENT PAST THE OPENING ON BOTH SIDES PER STRUCTURAL REQUIREMENTS
  • CONSIDER DOOR SIZE ACCORDING TO MASONRY MODULE
