Detail C. 2: Lintel

Masonry structural Section C

C3

C2

C1

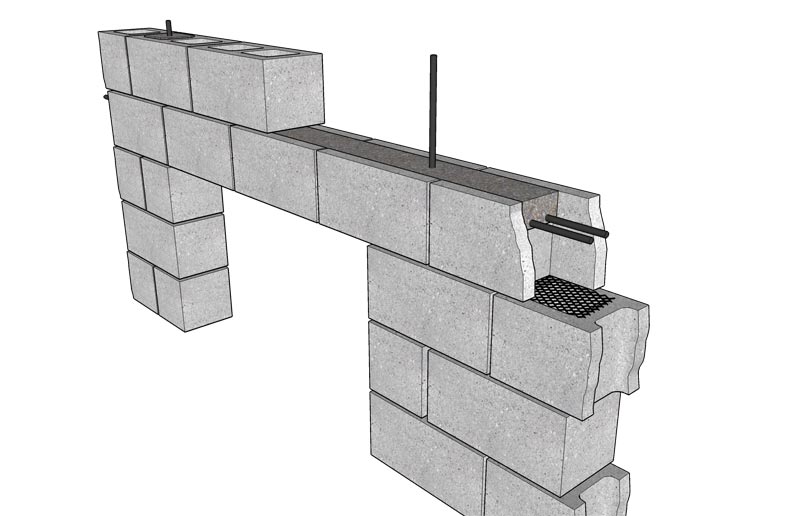

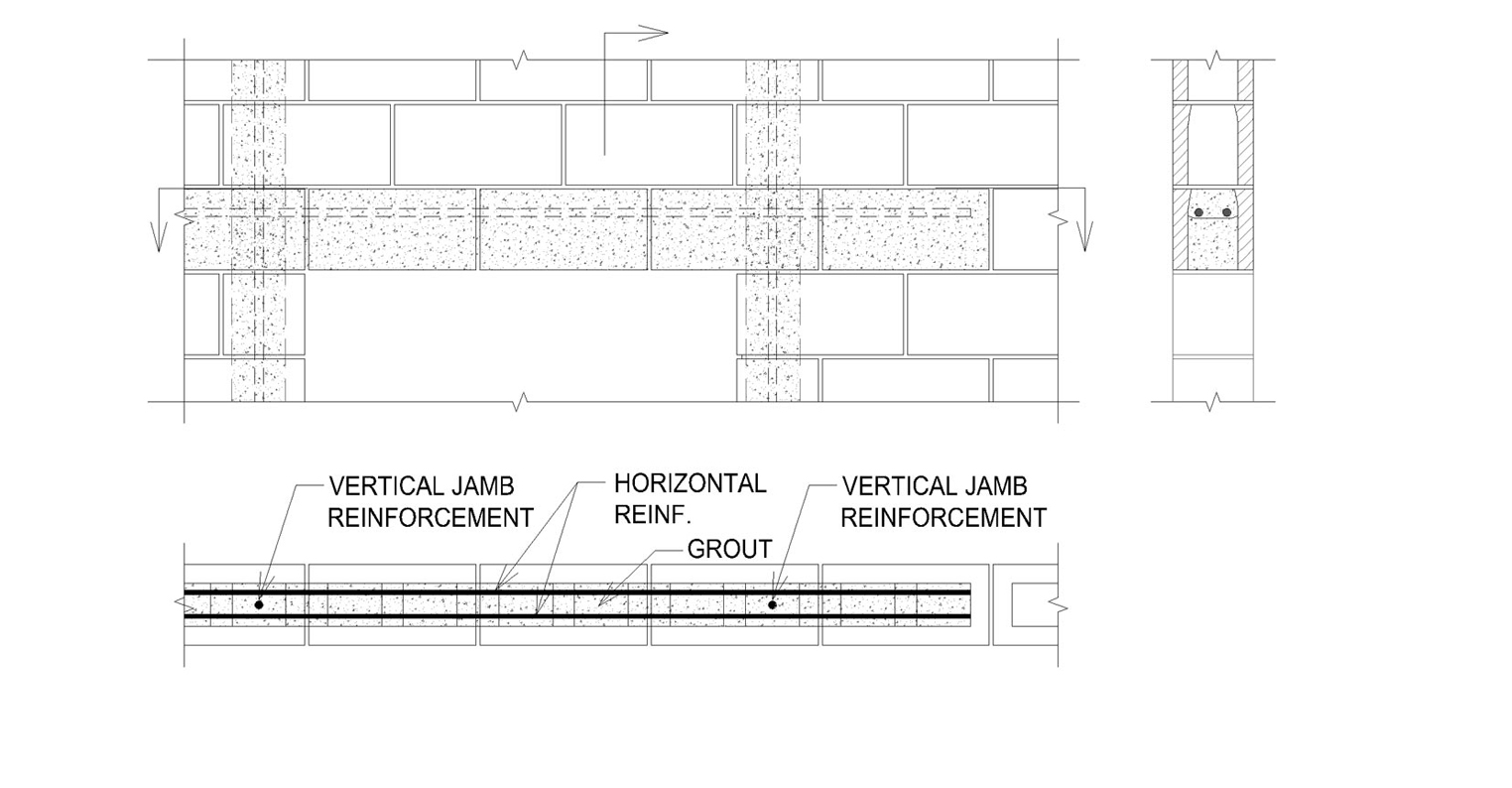

Structural - Detail C2 Image
Structural - Detail C2 Image
Notes

  • TWO OR MORE REINFORCED COURSES MAY BE REQUIRED FOR LONGER SPANS AND HEAVIER LOADS (SEE DETAIL D.1)
  • EXTEND REINFORCEMENT PAST THE OPENING ON BOTH SIDES PER STRUCTURAL REQUIREMENTS
  • CONSIDER DOOR SIZE ACCORDING TO MASONRY MODULE
