Masonry - Structural - Detail F.1 - Cast In Place Floor Connection

Detail F. 1: Cast In Place Floor Connection

Masonry structural Section F

Structural - Detail F1 Image

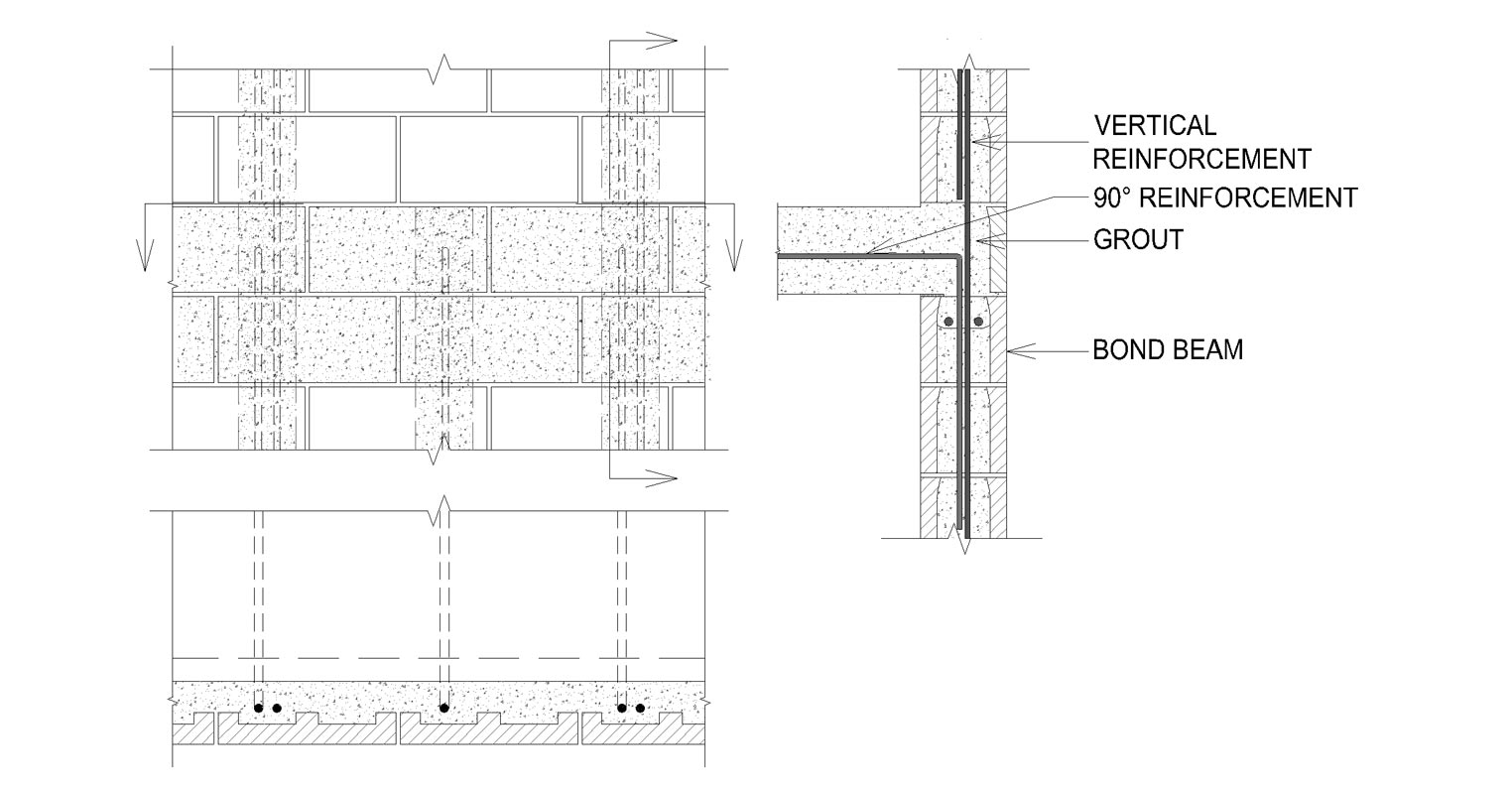

Structural - Detail F1 Image

90º ANCHOR SPACING MAY BE LESS THEN VERTICAL REINFORCEMENT SPACING
